Goods Receipt from Production - Architecture

 DISCRETE & PROCESS          MES - IDOCMES - IDOC

RECEIVING FROM PRODUCTION OVERVIEW

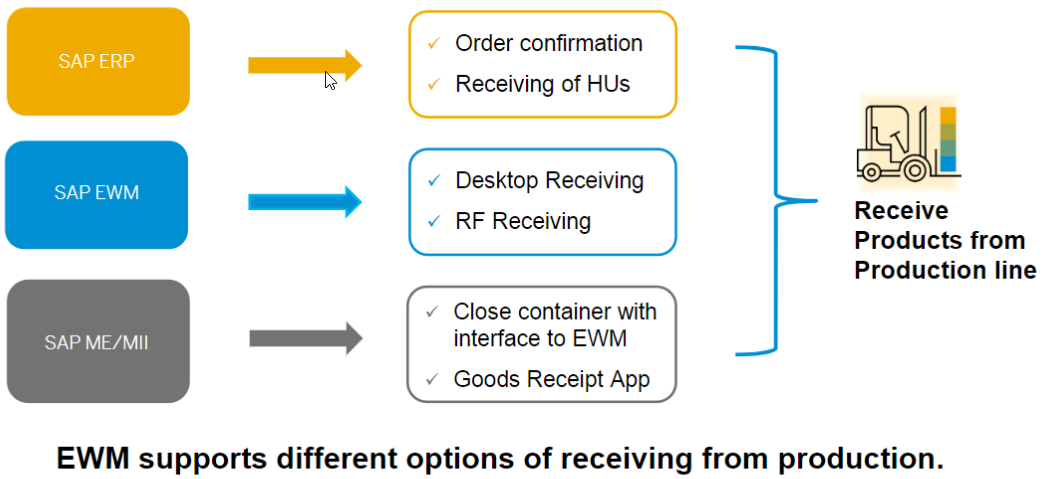

1. Receiving from Production Overview
2. ERP Triggered Receiving from Production
   • Production Orders for Discrete Manufacturing --> Discrete Strategy is 10 for Make to stock, 20 for Make to order
   • Process Orders for Process Manufacturing
   • Planned Orders for Repetitive Manufacturing

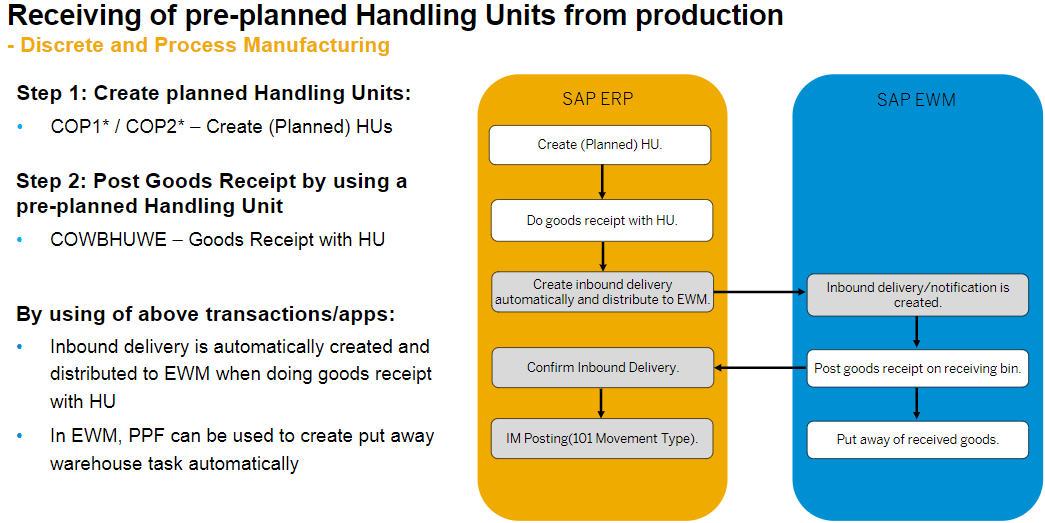

   • Receiving of Pre-planned Handling Units (Discrete and Repetitive Manufacturing)
3. EWM Triggered Receiving form Production

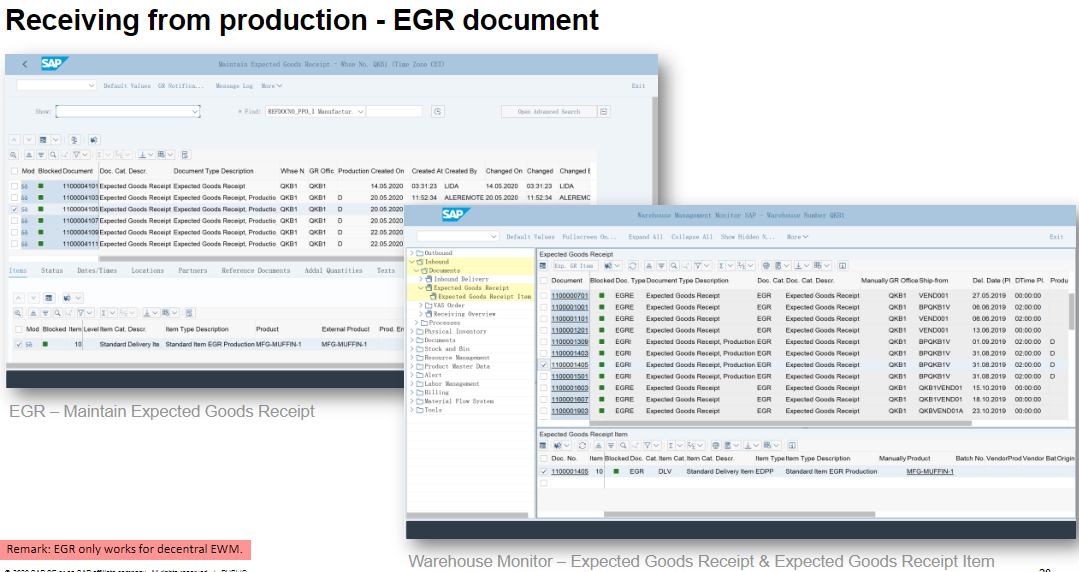

   • Using EGR document to do receiving (only for decentral EWM)
   • Examples of desktop transactions and RF transactions
   • Manual creation of inbound delivery in EWM
4. Connection to MES & SAP MII
   • SAP EWM integrates with SAP ME via SAP ERP
   • SAP EWM integrates with SAP ME directly
   • SAP EWM integrates with MES system via EWM API
     • Possible customer project leveraging SAP EWM API or RFC
     • Application Programing Interface (API)for ProductionProcesses –Receiving (EWM 9.2)
     • Encapsulation of APIs (EWM 9.4)
   • Receiving using SAP ME (Support with SAP ME 15.1.3)
   • Receiving using SAP MII (Support with MII OEE 15.1)
   • Connecting SAP EWM to MES and SAP MII
5. Main Differences for embedded and decentral
   • Functions only working with embedded EWM:
     • Synchronous Goods Movement Postings for repetitive manufacturing
     • Reading the manufacturing order directly instead of using the EGR document
   • Functions only working with decentral EWM:
     • Receiving form production -using EGR document for independent receiving operations
6. Future/After 2021

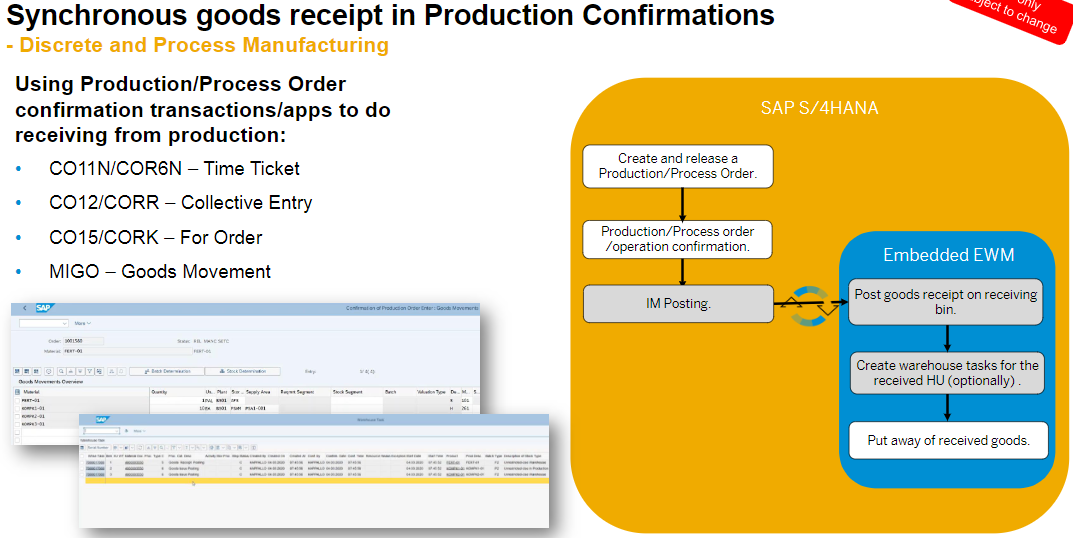

   • Synchronous goods receipt in Production Confirmations (Discrete and Process Manufacturing

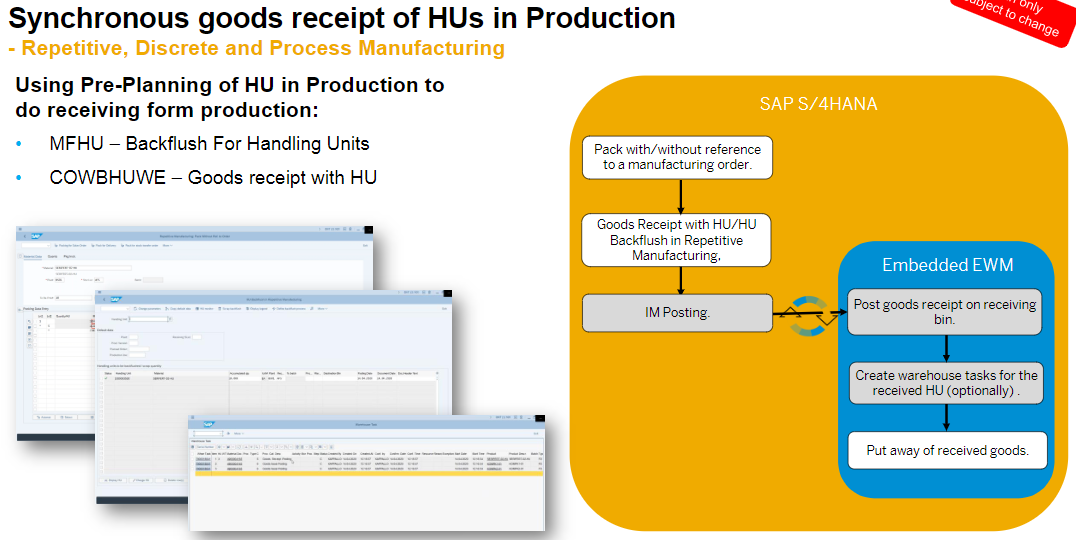

   • Synchronous goods receipt of HUs in Production (Repetitive, Discrete and Process Manufacturing)

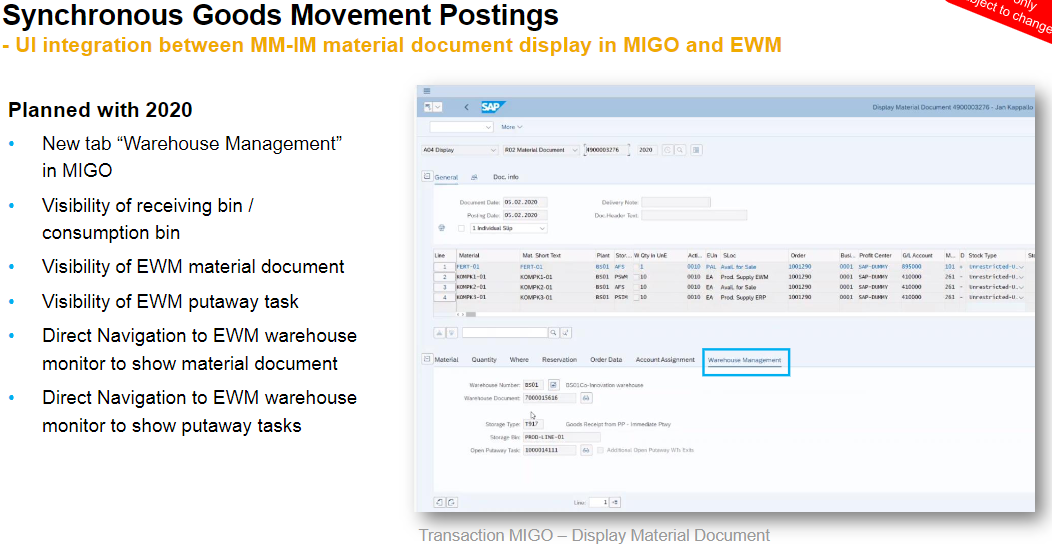

   • Synchronous Goods Movement Postings (UI integration between MM-IM material document display in MIGO and EWM) - 2020

 Go to TOP

2) ERP Triggered Receiving from Production

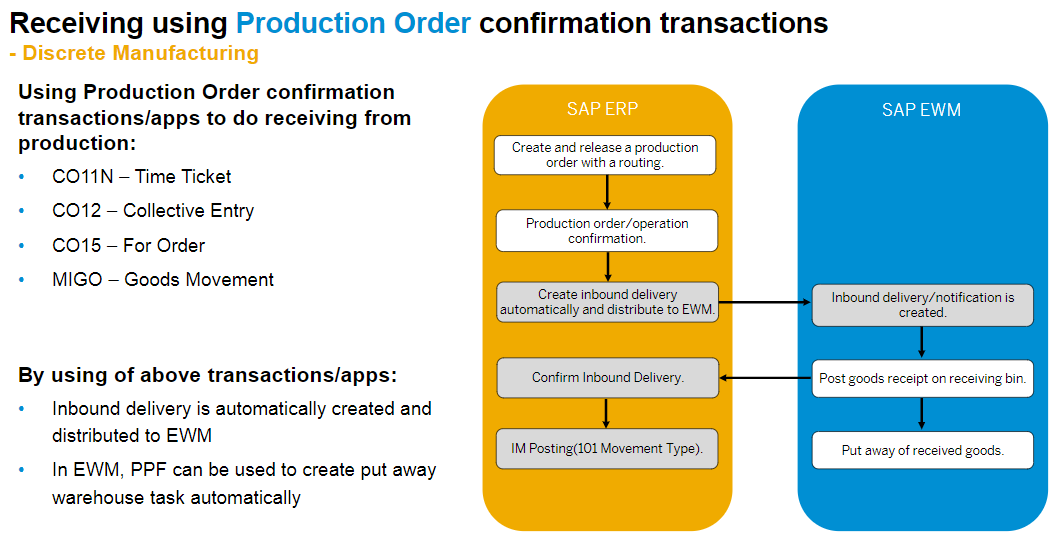

• (1/4) Receiving using Production Orders for Discrete Manufacturing

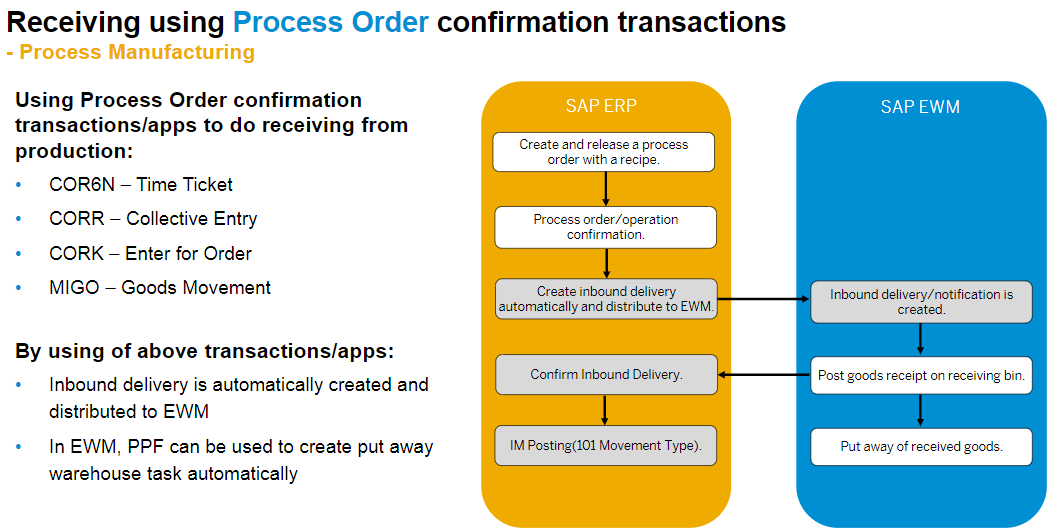

• (2/4) Receiving using Process Orders for Process Manufacturing

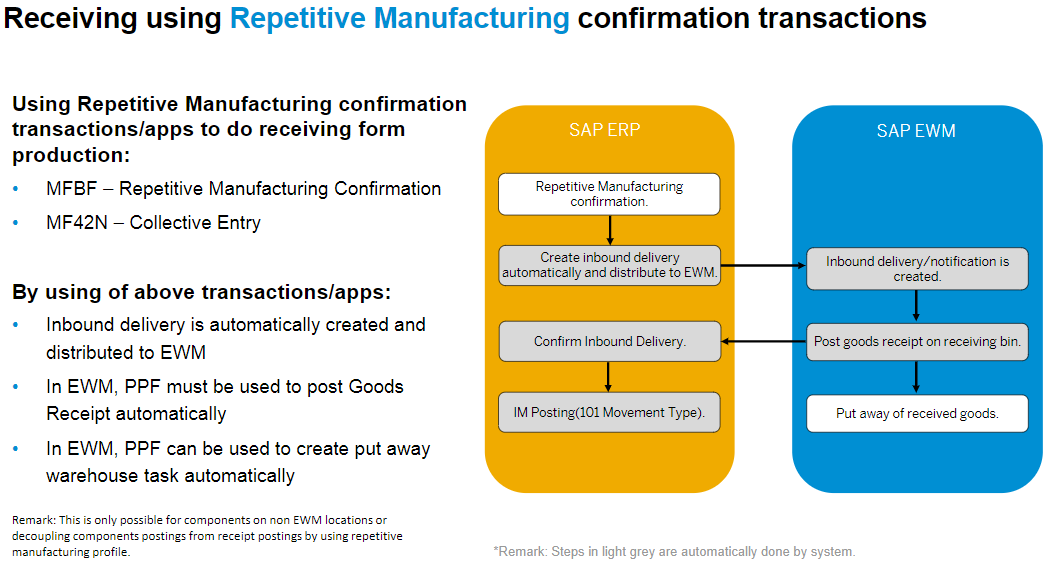

• (3/4-A) Receiving using Planned Orders for Repetitive Manufacturing Decentral

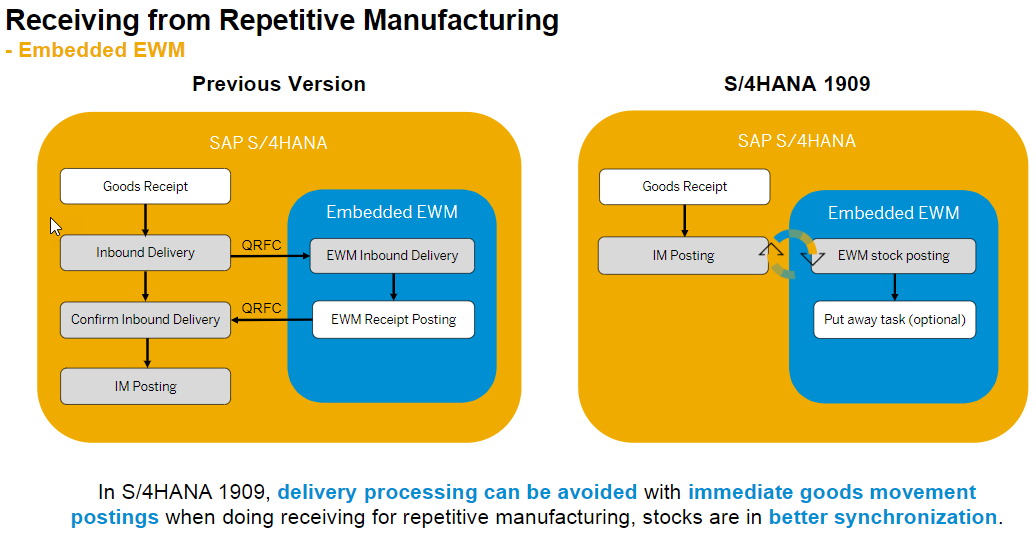

•         (3/4-B) Receiving using Planned Orders for Repetitive Manufacturing Embedded

• (4/4-A) Receiving of Pre-planned Handling Unit from Production -

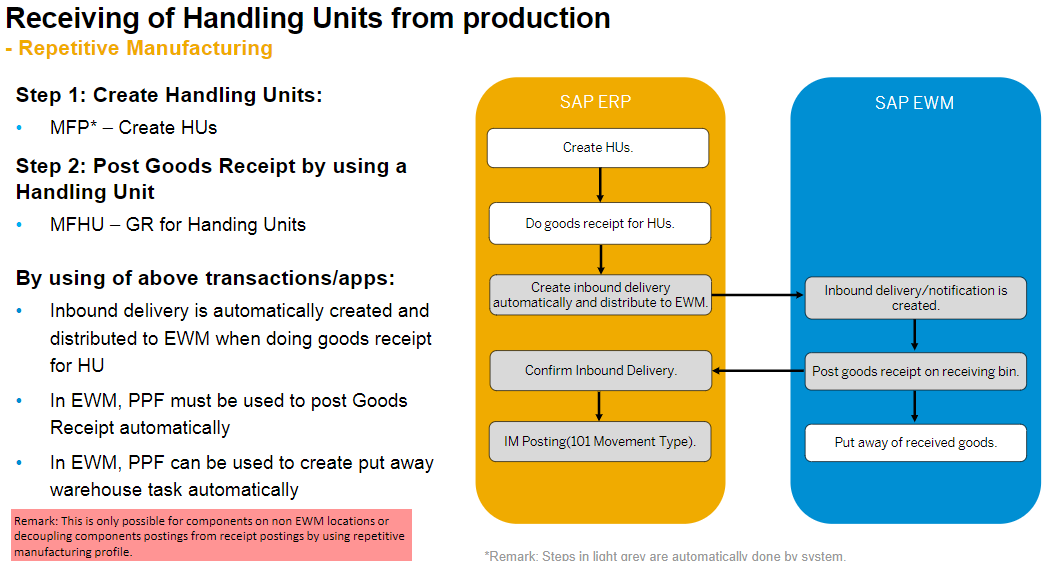

• (4/4-B) Receiving of Handling Unit from Production - Repetitive Manafacturing

 Go to TOP

3) EWM Triggered Receiving form Production

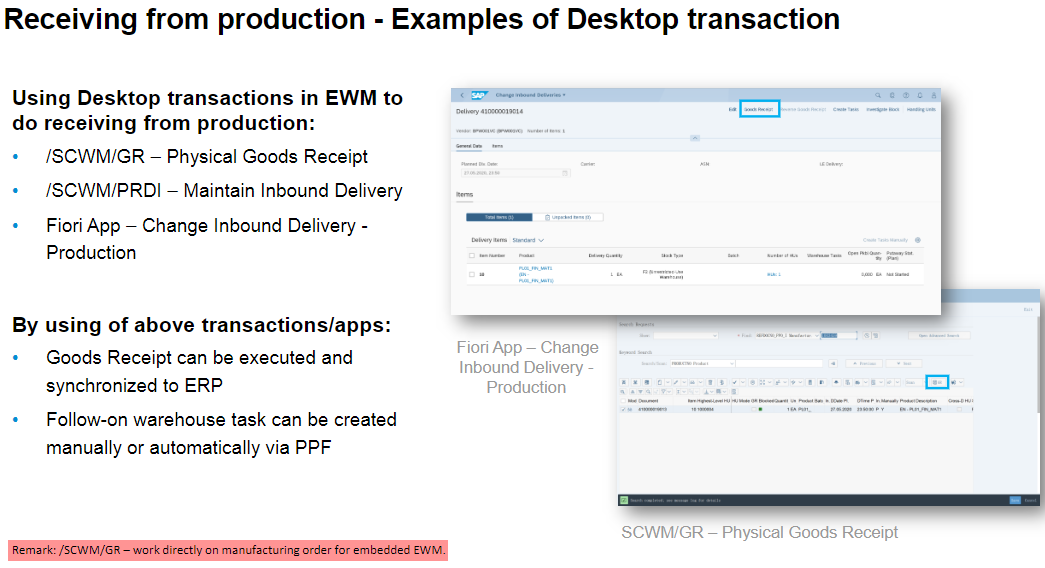

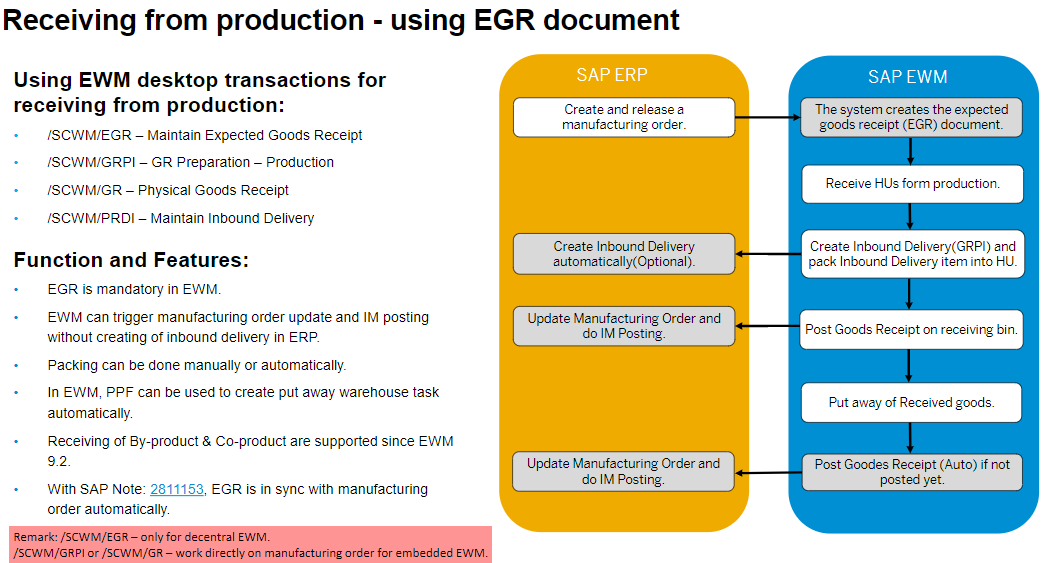

• (1/3) Receiving from Production - using EGR document -Desktop Transaction

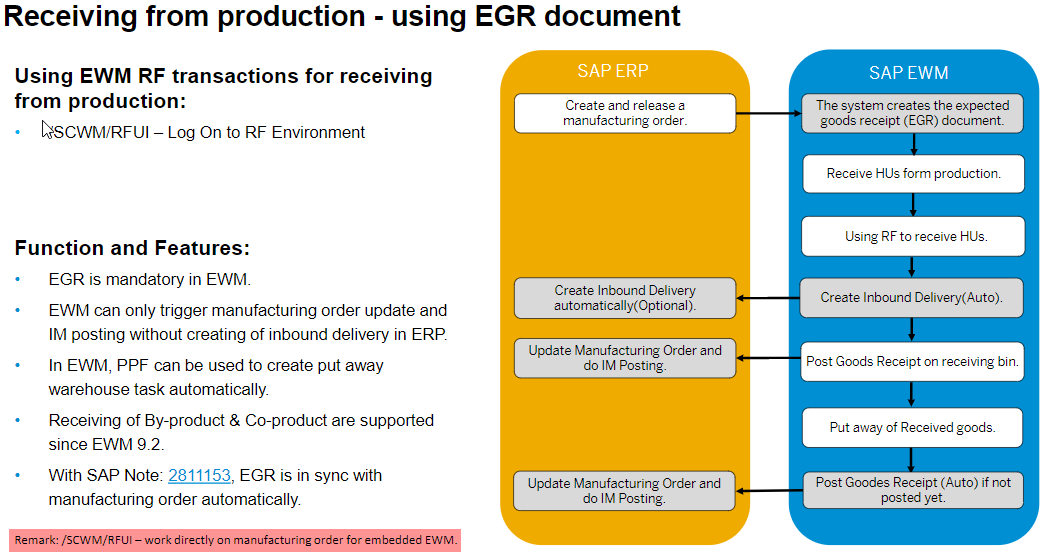

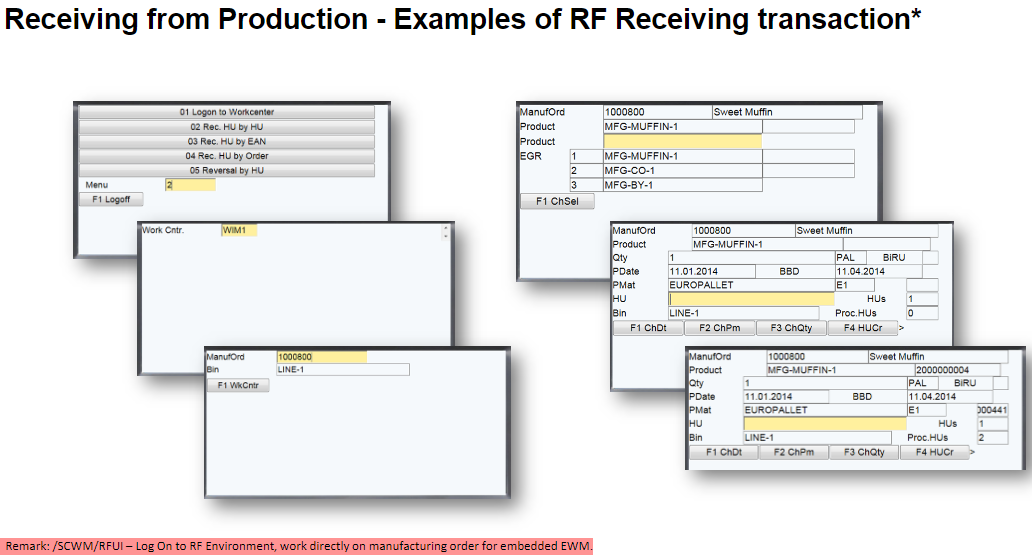

• (2/3) Receiving from Production - using EGR document -RF Transaction

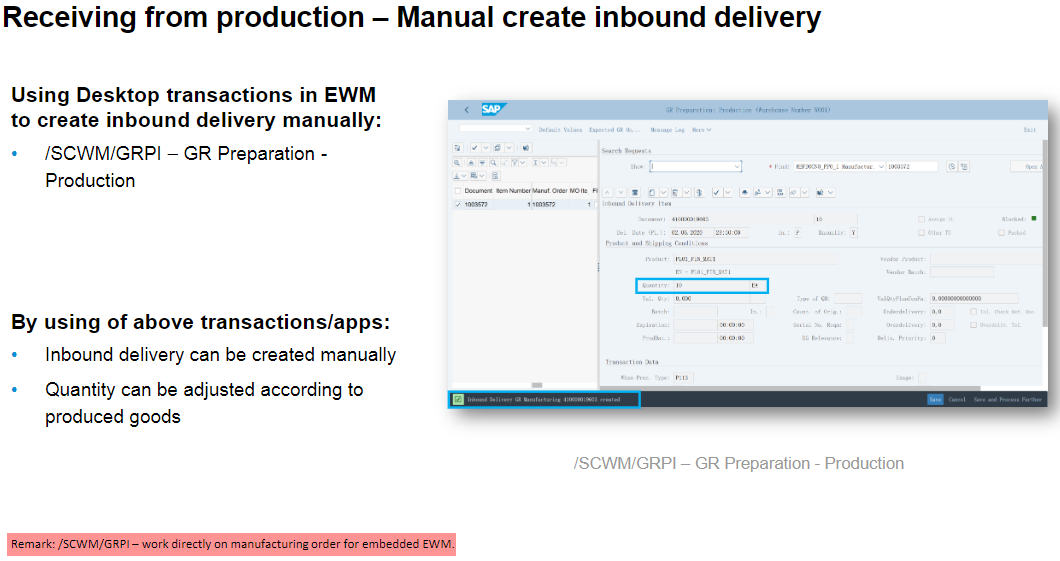

• (3/3) Receiving from Production - Manual create inbound delivery

Go to TOP

4. Connection to MES & SAP MII

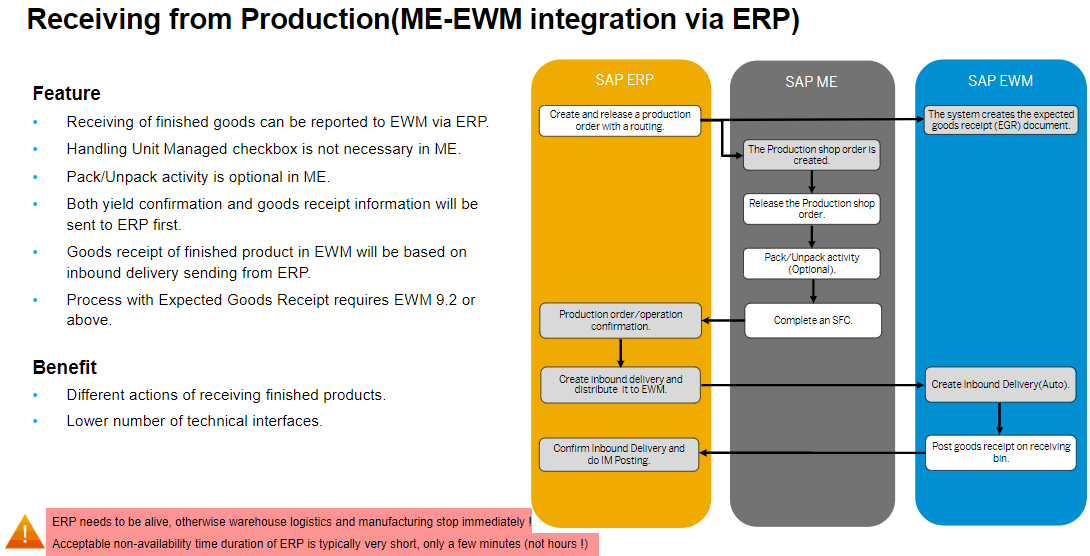

   • (1/5) ME-EWM integration via ERP

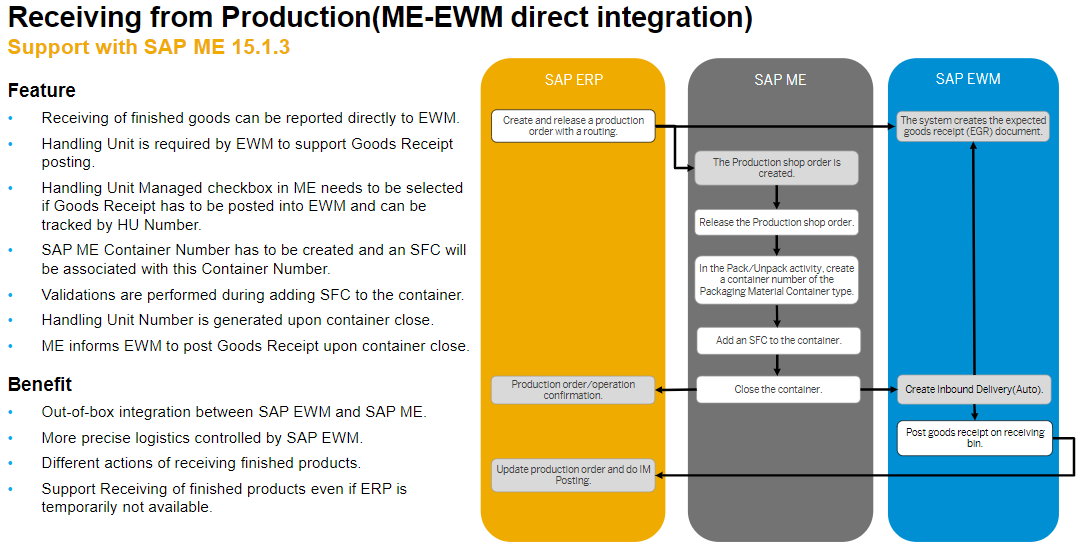

• (2/5) ME-EWM direct integration

• (3/5) SAP EWM integrates with MES system via EWM API

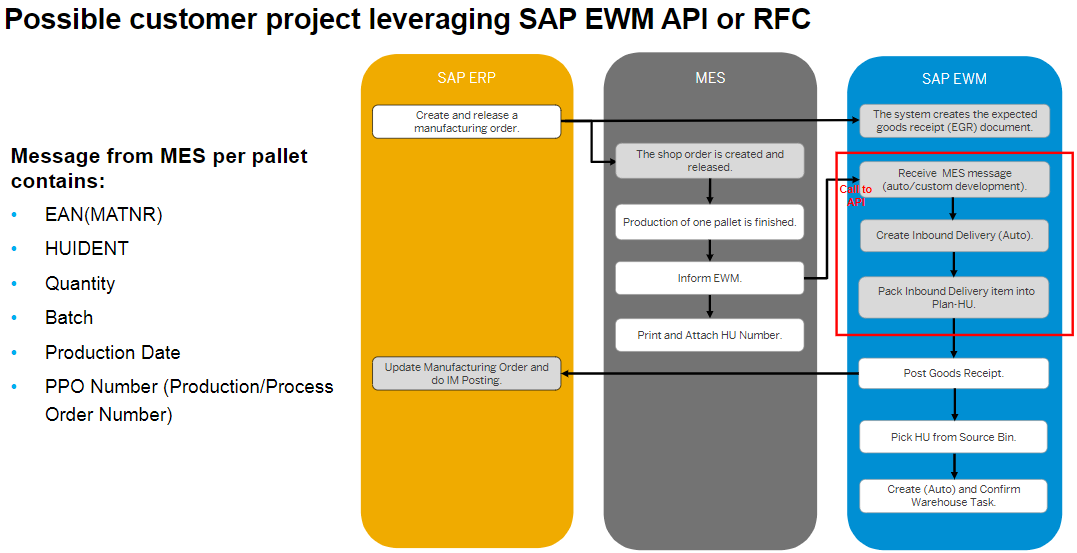

  • 3-A) Possible customer project leveraging SAP EWM API or RFC

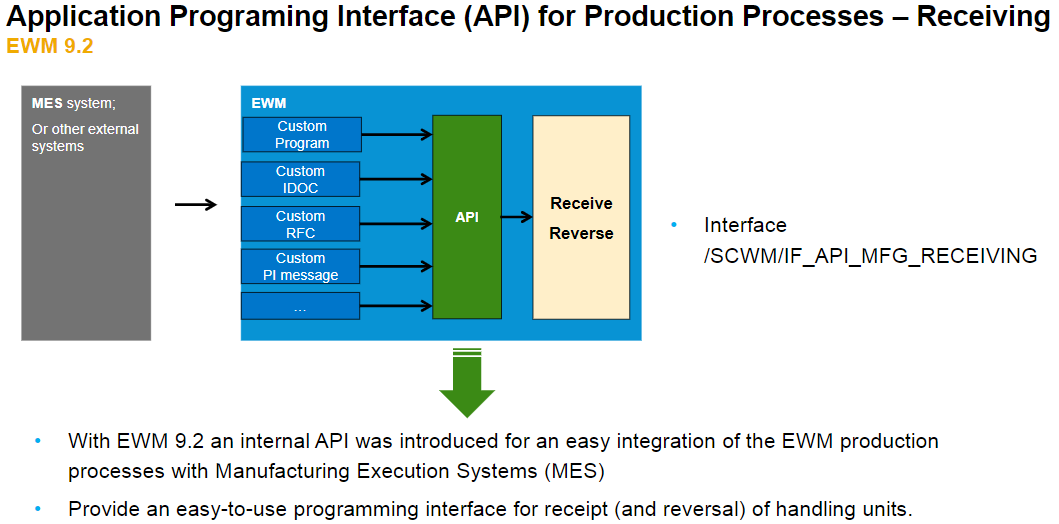

• 3-B) Application Programing Interface (API) for ProductionProcesses –Receiving (EWM 9.2)

• 3-C) Encapsulation of APIs (EWM 9.4)

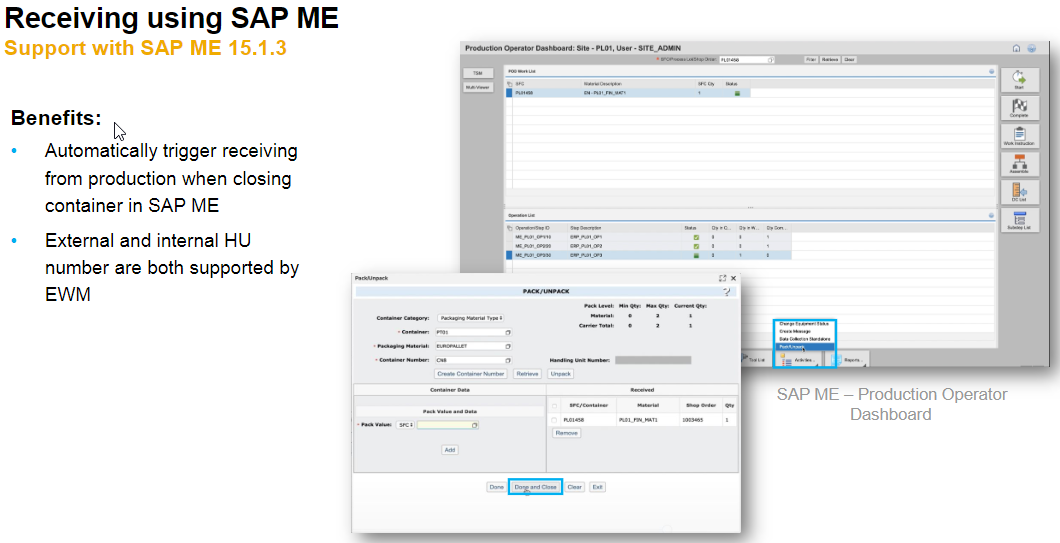

• (4/5) Receiving using SAP ME (Support with SAP ME 15.1.3)

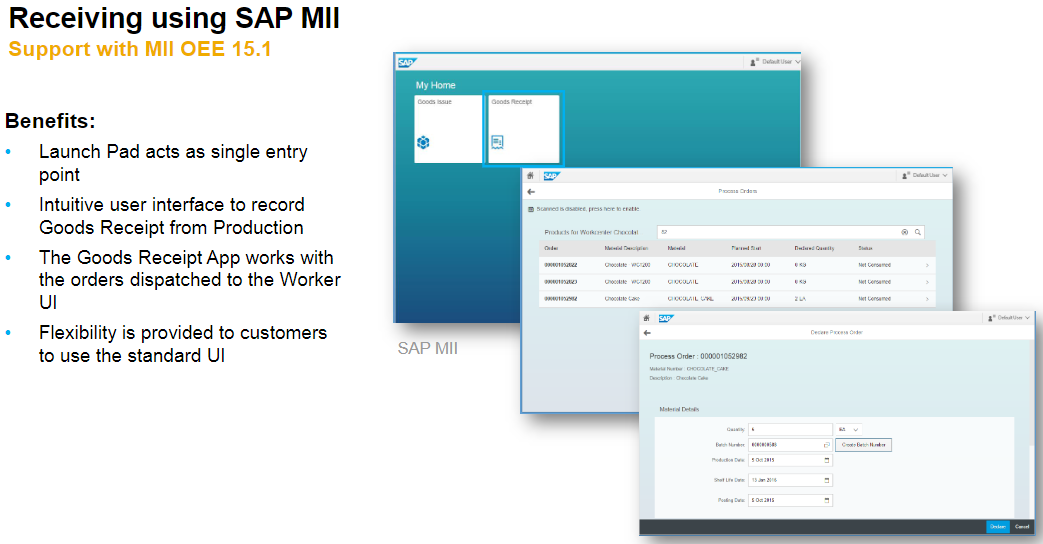

• (5/5) Receiving using SAP MII (Support with MII OEE 15.1)

Go to TOP

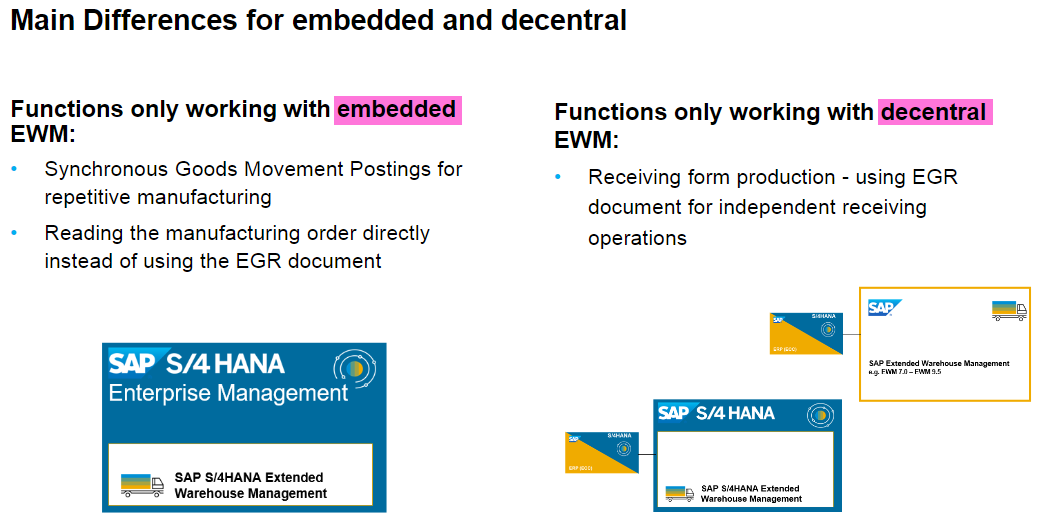

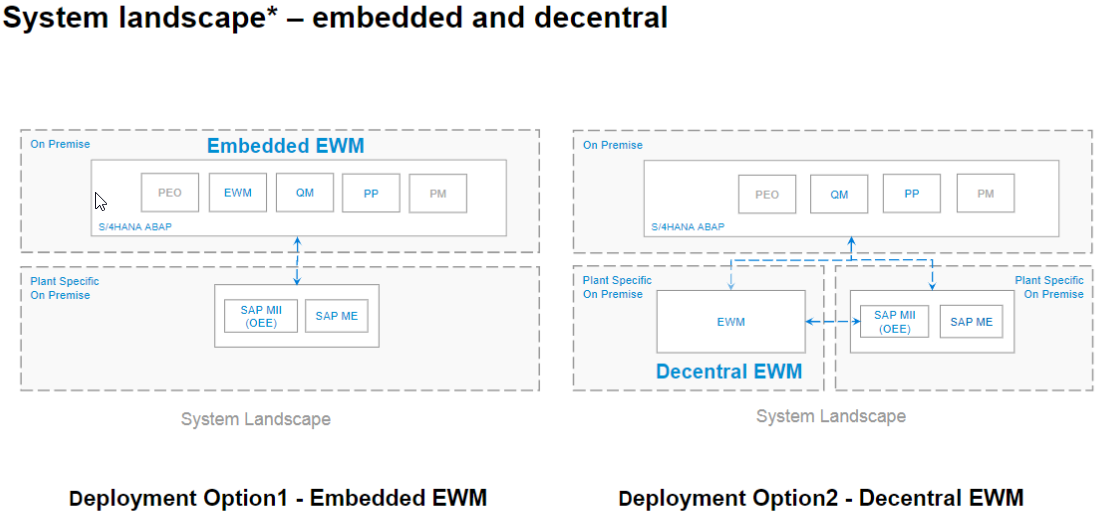

5. Main Differences for embedded and decentral

 Go to TOP

6. Road Map

Go to TOP

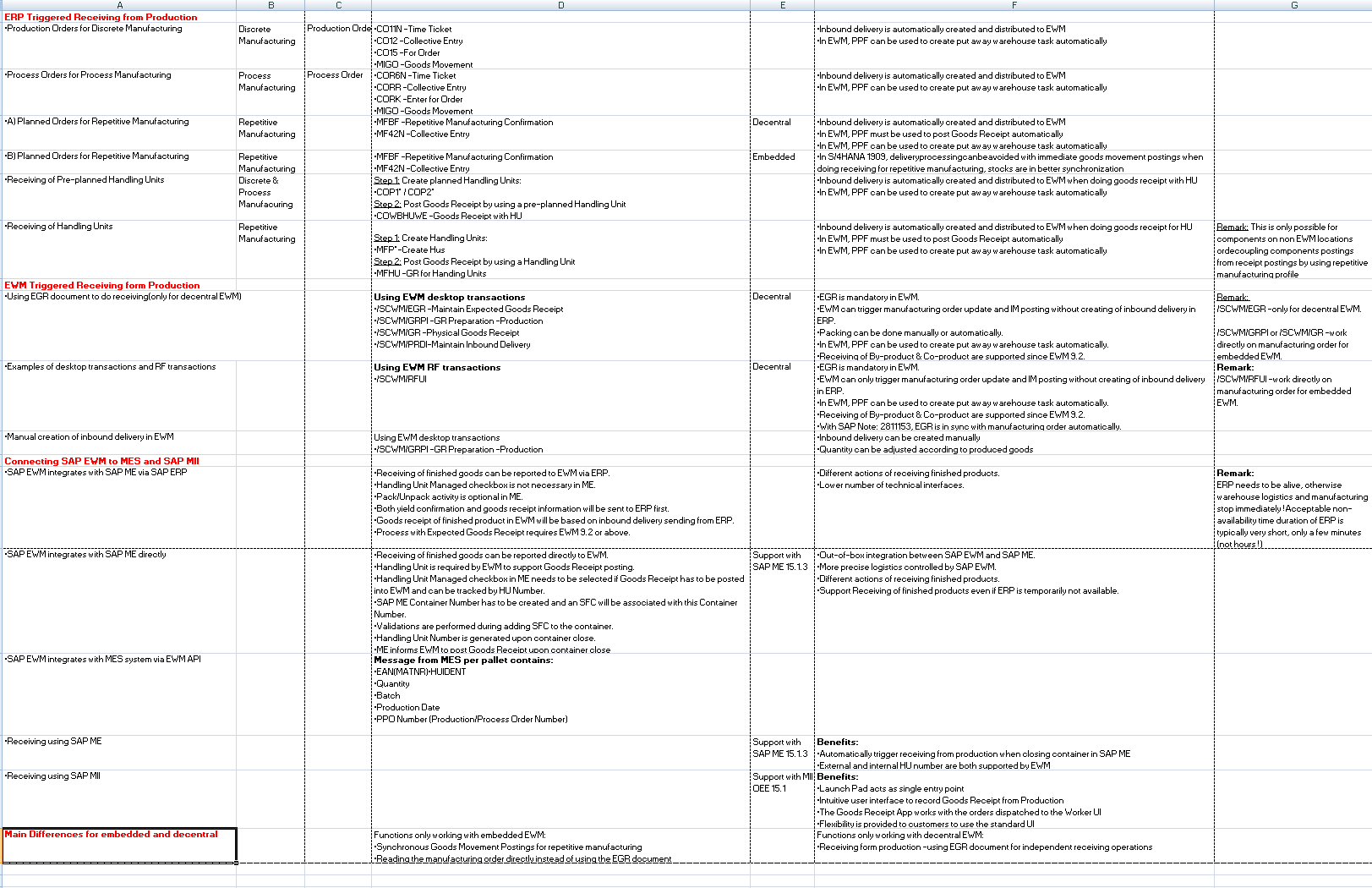

Excel Summary
